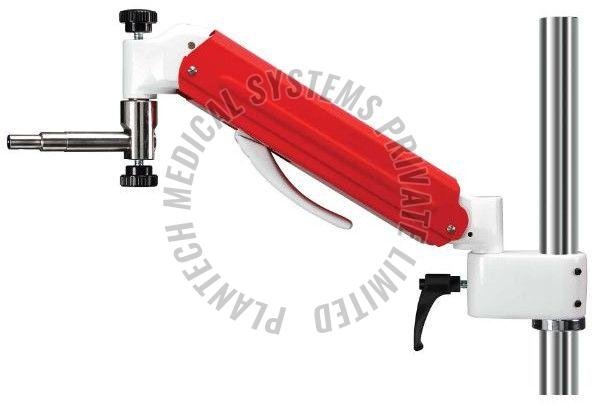

Phoropter Arm


Phoropter Arm

We are principal manufacturer and exporter of Phoroptor Arm, which is an experts design made to suffice the varied requirement of the Ophthalmologist. For mounting any refractor it is the most convenient tool. It’s Hydraulic system is very fine and smooth, and provides jerk free upwards and downwards movement.


Specifications
  • Well Counter balance arm
  • Can mount any type of refrector
  • Main holding collar id size : 42.2 mm
  • 360 degree rotation lock is helping to lock it in any position
  • Facility to adjust the center distance of patient eye
  • Refractor adjustment : 70 mm
  • Displacement for up/down travelling : 290 mm
  • Pole to arm pin center distance : 515 mm
  • Refractor mounting pin : 15.7 mm
  • Weight lifting (max) : 4 kgs
